Waves eMotion LV1 Control
Premium fader expansion for Waves LV1 live mixing
Add More Faders to Your LV1

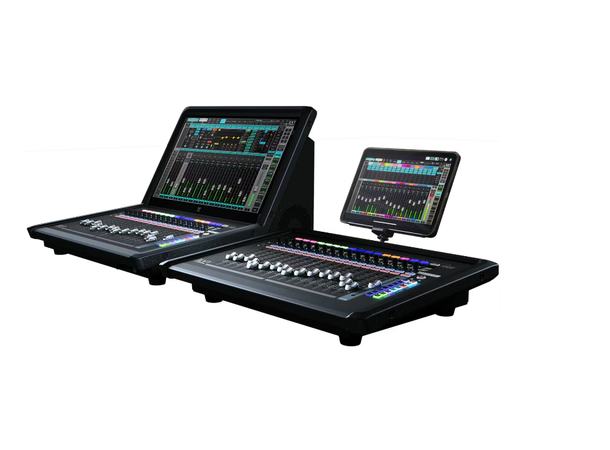

LV1 Control is a premium control surface designed to serve as a fader expansion for LV1 Classic digital mixing consoles. It can also serve as the fader bank for modular LV1 systems. Connecting to your LV1 with a single USB connection, LV1 Control enables greater tactile control of LV1 than ever before.

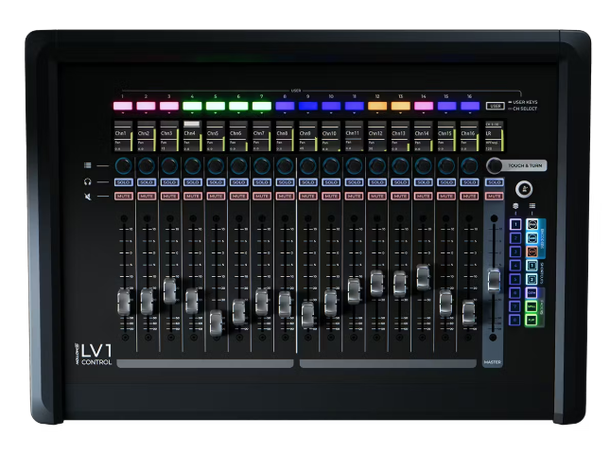

Based on the same architecture as LV1 Classic’s tactile surface, LV1 Control features 17 motorized 100mm faders, 17 encoders, and 17 mini-displays with per-channel LCD metering; Touch-and-Turn function mapping for on-screen parameters; Select/Mute/Solo toggle control per channel; 8 layer keys and 8 utility keys; tempo pad; and 16+2 user-defined keys for user customization.
- 17 motorized 100mm faders and 17 precision encoders
- 17 mini-displays with per-channel LCD metering
- Touch-and-Turn mapping for on-screen parameters
- Select/Mute/Solo toggle control per channel
- 8 layer keys, 8 utility keys, dedicated tempo pad
- 16+2 customizable user-defined keys

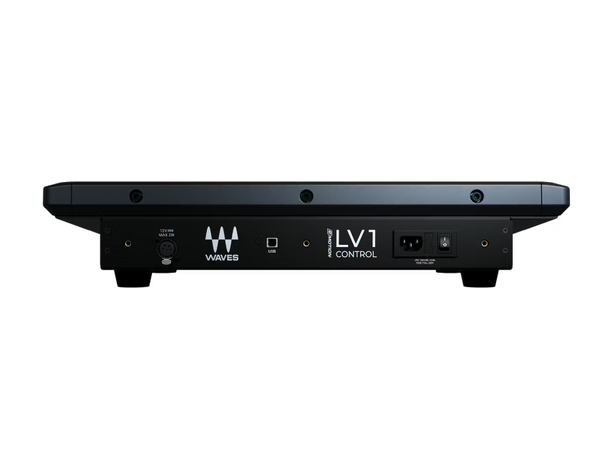

- USB port for system connection
- 12V XLR4 lamp connection
- Internal 100-240V switching power supply
- ¾? threadings for mounting accessories
- 22.1” W x 15.6” D x 4.6” H (561 x 396 x 116 mm)
- Weight: 14 lbs (6.4 kg)
