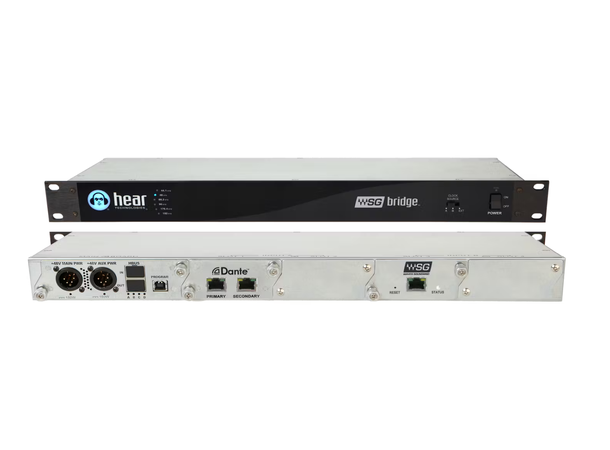

Waves WSG Bridge from Hear Technologies

Bring Waves' powerful, award-winning plugins into your Dante network with the rack-mountable WSG Bridge. Fluent in SoundGrid and Dante, WSG Bridge bidirectionally routes up to 64 channels between Dante and SoundGrid networks for processing, audio interfacing, and much more.

In addition, dedicating a Waves SoundGrid Server to running Waves and 3rd party SoundGrid plugins adds ultra-low latency processing capabilities for up to 64 channels of your Dante network.

• Bring the award-winning sound of Waves plugins into Dante networks
• 64 channels of bidirectional audio between Dante and SoundGrid
• Port for redundant power supply (optional, purchase separately)
• Supports sample rates from 44.1 kHz to 96 kHz
• Rugged, 1U rack-mountable enclosure
• Clock source: SoundGrid/Dante, and synchronization over Ethernet

Specs:

System I/O

Latency

• Typical Dante to WSG or WSG to Dante Latency:*
• 0.787ms @ 44.1kHz
• 0.778ms @ 48.0kHz
• 0.580ms @ 88.2kHz
• 0.520ms @ 96.0kHz

  *For round-trip time, latency is exactly double
  **Does not include any A/D or D/A conversion time or plugin processing time

  Clock Source

• A: Input “A” as clock master (Dante)
• B: Input “B” as clock master (WSG)
• EXT: Future external clock input (optional future external word-clock I/O card)

  Sampling Rate

• 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

  USB Port

• USB 2.0 (for firmware updates and future connectivity)

  Card Slots

• Each slot can accept an analog or digital input card, output card, or 8-port Mixer network card

  HBUS Input

• 8-pin RJ45 jack (for future expansion)

  HBUS Output

• 8-pin RJ45 jack (for future expansion)

• Waves SoundGrid Card

  Audio Inputs

• 64 (8-pin RJ45 jack 1000BaseT Ethernet for WSG audio network)

  Audio Outputs

• 64 (8-pin RJ45 jack 1000BaseT Ethernet for WSG audio network)

  Sampling Rates (Supported)

• 44.1kHz, 48kHz, 88.2kHz, 96kHz

  Dante Card

  Audio Inputs

• 64 @ 44.1kHz or 48kHz; 32 @ 88.2kHz or 96kHz (8-pin RJ45 jack 100BaseT or 1000BaseT Ethernet for Dante audio network)

  Audio Outputs

• 64 @ 44.1kHz or 48kHz; 32 @ 88.2kHz or 96kHz

  (8-pin RJ45 jack 100BaseT or 1000BaseT Ethernet for Dante audio network)

  Sampling Rates (Supported)

• 44.1kHz, 48kHz, 88.2kHz, 96kHz

  Physical

  Dimensions

• 1.75” (44.5 mm) H x 19” (483 mm) W x 8.5” (216 mm) D

  Unit Weight

• 6.3 lb. (2.8 kg)

  Mounting

• Standard rack mount, 1 RU

  Power

  Power Requirements

• 48 VDC, 400mA Main (primary power supply)
• 48 VDC, 400mA Secondary (redundant power supply)

  External Power Supply Requirements

• Input Voltage: 100VAC to 240VAC 50/60Hz
