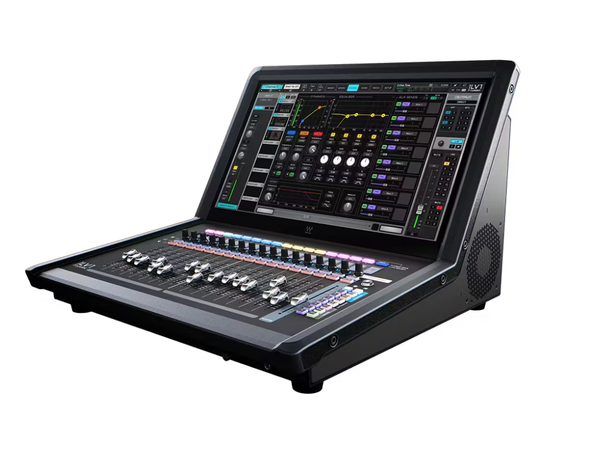

Waves eMotion LV1 Classic

The first fully integrated live mixing console by Waves

64 stereo channels. 44 buses. 16 Waves Signature Preamps. Industry-
leading sound & processing. Now in a classic console form factor.

Maximum Power.
Compact Form.

eMotion LV1 Classic builds upon the industry-proven quality of the Waves LV1 mixer engine, and delivers its advantages in the preferred console workflow of live sound engineers worldwide.

With a pristine-sounding mixer engine, quick-access UI, and the industry’s deepest integration of state-of-the-art processing, LV1 Classic packs more live mixing power into a compact console than ever before.

Key Features

• 64 mono/stereo input channels
• 44 mono/stereo buses: 8 groups, 24 auxes, 8 matrices, 3 master, cue
• Double Precision 32-bit floating point mix engine (44.1–96 kHz)
• Latency as low as 0.8 ms
• 21.5” multi-touch screen with 1000 Nit brightness
• 16+1 motorized 100 mm Alps faders
• 16+1 precision encoders, with mini-displays including per-channel LCD metering
• Select/Mute/Solo keys per channel
• 16 layers with utility keys and tempo pad
• 16+2 user-customizable shortcut keys
• 16 Waves Signature Preamps with mic/line inputs
• 12 line outputs, 2 AES3 outputs, AES3 SRC input
• Internal ultra-low-latency Waves SoundGrid DSP engine handles processing

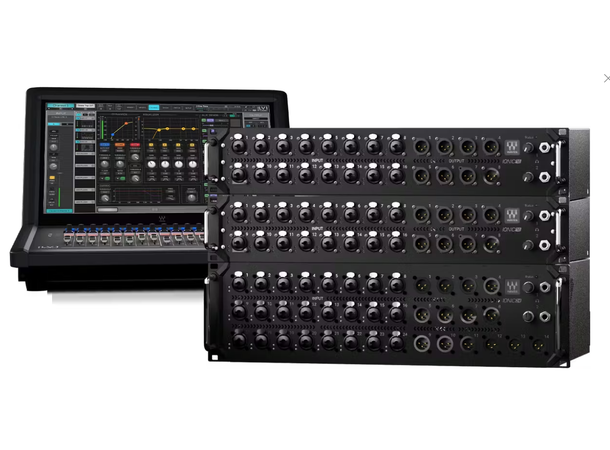

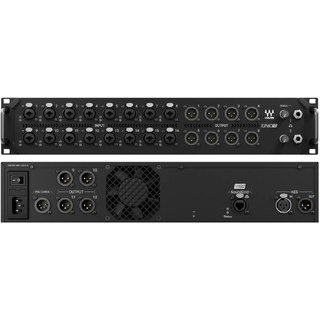

• Add more I/O: Up to 14 SoundGrid-compatible devices, including Dante and MADI convertors
• Add up to 3 processing servers and 4 backup servers
• 4 SoundGrid switch ports: 2 Ethercon + 2 Rj45
• 8-slot rack hosts 8 plugins per input channel + all mix channels
• Plugins included with the console:
• F6 Dynamic EQ
• Waves Tune-Real Time
• eMo Q4 EQ
• eMo D5 Dynamics
• eMo F4 Filter
• GEQ 30-band EQ
• X-FDBK Feedback Eliminator
• PSE (Primary Source Expander) Mic Bleed Reduction
• Renaissance Compressor
• Renaissance Bass
• Doubler
• H-Delay
• Renaissance Reverb
• TrueVerb
• Magma Tube Channel Strip
• GTR3
• 160 additional award-winning Waves plugins available as upgrades
• Immersive in-ear mixing available as software upgrade (eMo IEM)
• Dugan auto-mixing available as software upgrade
• Custom options for mixing layout
• Intuitive control over each channel’s parameters
• Patch system-wide connections
• Custom colors per channel
• Unicode multi-language support
• Up to 1000 scenes with Recall Safe and Scope Filters
• 8 Mute groups and 16 Link DCAs with Spill function
• Digital preamp control with local V-Gain tracking for sharing
• Multiple outputs per channel with delay alignment controls
• Record 16 tracks locally to USB / 128 tracks to remote computers
• Stereo playback from USB
• Remote control apps for mobile & tablet, for both FOH and stage
• Size: 22” (560 mm) x 15.8” (402 mm) x 22.1” (561 mm)
• Weight: 38 lbs. (17.2 kg)
