RME Digiface AVB Lydkort 128x AVB IO USB 3  interface

RME Digiface AVB Lydkort

128x AVB IO USB 3 interface

1 på lager
BeskrivelseTeknisk infoTilbehørRESSURSER

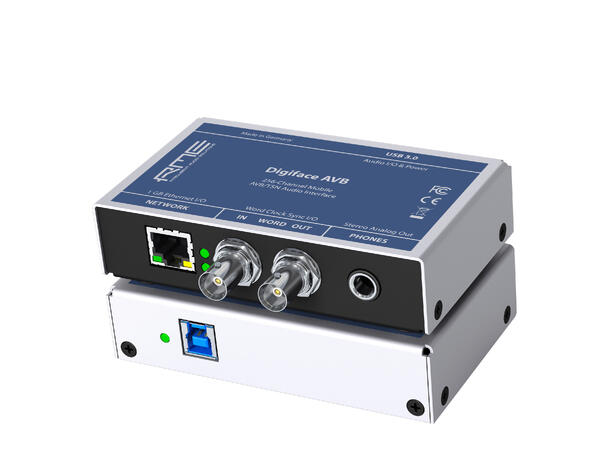

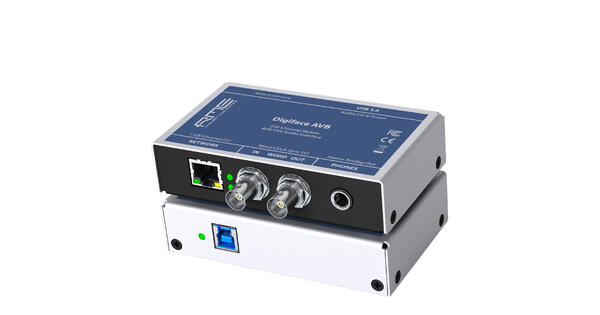

RME Digiface AVB

AVB lydkort

The mobile audio interface is based on the AVB standard (Audio Video Bridging) and enables the transmission of up to 256 network audio channels between a Windows computer and other AVB devices within an audio Gigabit network via a single USB 3.0 cable.

The future of audio networks

With the Digiface AVB, RME focuses on the future of audio network technology. The mobile audio interface with USB bus power operation uses the open IEEE 802.1 protocol as part of the AVB standard of the Audio/Video Bridging Task Group and enables synchronized and prioritized streaming of audio data over a gigabit network. The integrated USB 3.0 connection allows up to 128 audio channels to be streamed back to the AVB network and another 128 channels to the computer – with sampling rates of up to 192 kHz. Users can adjust the channel sizes of streams between 2 and 32 channels as needed to ensure maximum compatibility with AVB audio devices available on the market.

In addition to the Gigabit Ethernet connection and USB 3.0 port, the RME Digiface AVB features word clock I/O and a headphone output for ?exible, high-quality monitoring of the transmission signals. The package also includes the DSP-based TotalMix FX mixer with its comprehensive routing and monitoring options as well as an AVDECC controller. The controller enables detection of all AVB devices within a network and allows users to manage and monitor incoming and outgoing streams.

Teknisk info


- Funksjon & bruk Standalone
- Grensesnitt (Protokoll) AVB
- Tilkoblinger (Pluggtype HW)
  • RJ45
  • USB 3.0
  • USB
