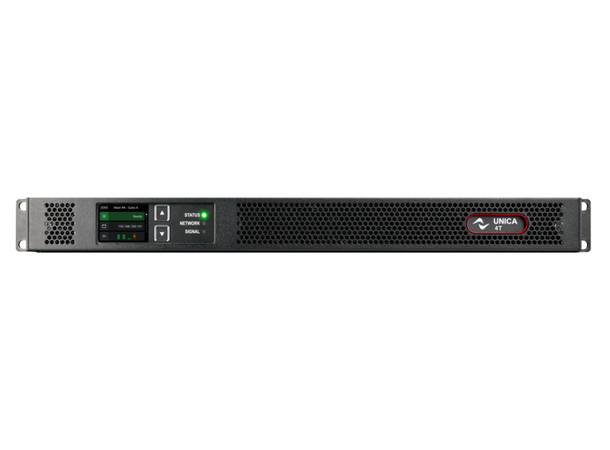

Powersoft Unica 4T
The touring version of UnicaTM is UnicaTM a compact, 1RU amplifier platform platform features Powersoft’s next-generation DSP developed for rental companies and live shows. This 8-channel version features a 10kW total power model, keeping true the power density of the UnicaTM platform. The output channels can deliver up to 2400W @ 2.7 O for the 10K8T model when asymmetrically loaded. The power supply allows worldwide operation (100240VAC), and it is equipped with the latest generation of singlestage power factor correction (PFC). The proprietary Smart Rails Management (SRM) allows the supply rails to adapt in real-time DO000309.02 Rev. 00 to the required output voltage to maximize efficiency and reduce idle losses. for state-of-the-art processing and pristine audio performance. The three 1Gb Ethernet ports, along with the native DanteTM and AES67 support, allow for different network topologies, including daisy-chain and DanteTM redundant. Studio-grade Galvanically Insulated Analog Inputs for each channel provide immunity to noise coupling, excellent common mode rejection ratio (>90dB up to 1KHz), and abuse tolerance on the analog inputs. The front panel display allows quick access to the amplifier operating status, including headroom, input levels, and more information for local monitoring. Custom Ruggedized Phoenix Connectors Housings, designed for heavy-duty applications, provide strain relief and quick locking/ unlocking functionality (pat. pending). Lastly, UnicaTM Series amplifiers natively support cloud connectivity for remote monitoring and control from any device anywhere in the world via the Powersoft Cloud.
- Large scale touring systems
- Arena & concert halls
- Stadiums & open-air venues
- Multi-zone venues & live clubs
- Mission critical applications
- Theaters, performace venues
- Houses of worship
