IsoAcoustics ISO-155 (par) bordstativ

Høyttaler bordstativ (155x190mm)

Varenr: 106909
-+
4 på lager
BeskrivelseRESSURSER
Beskrivelse
NB: pris pr par

The IsoAcoustics ISO-L8R155 Home and Studio Speaker Stands

Fine-tune your sound the way it's meant to be heard

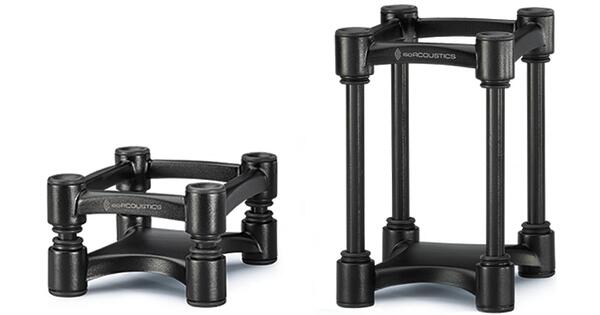

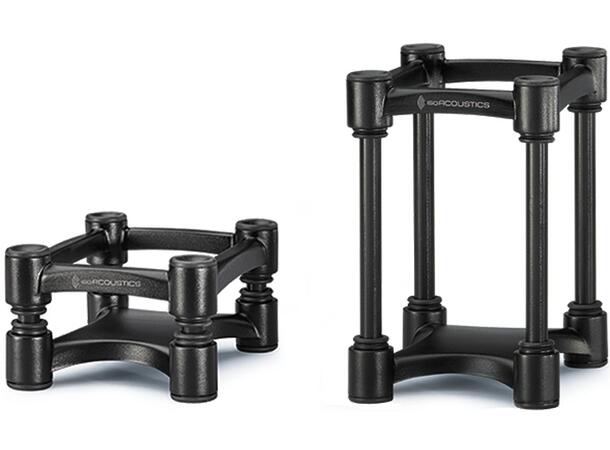

The IsoAcoustics ISO-L8R155 Speaker Stand Line-Up
IsoAcoustics offers three sizes of audio stand to fit your speakers. Each size is optimized to get the most from your particular speaker system.

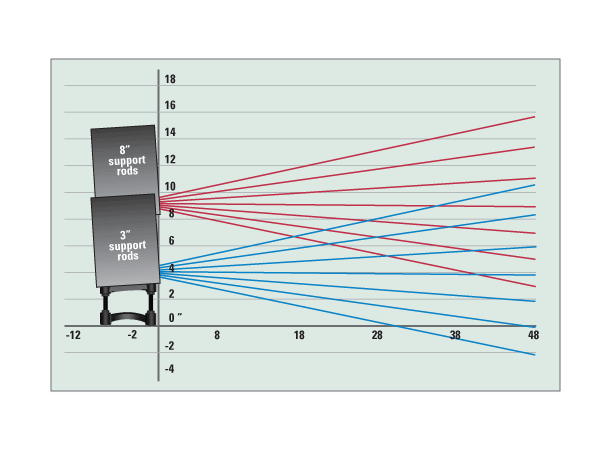

Stands can be configured to 3" or 8" in height, with inserts that provide a variety of tilt-up and tilt-down adjustments. In the lowest configuration, the monitor can be tilted down to focus the tweeter to a height below the original supporting surface - providing superior isolation and sound improvement.

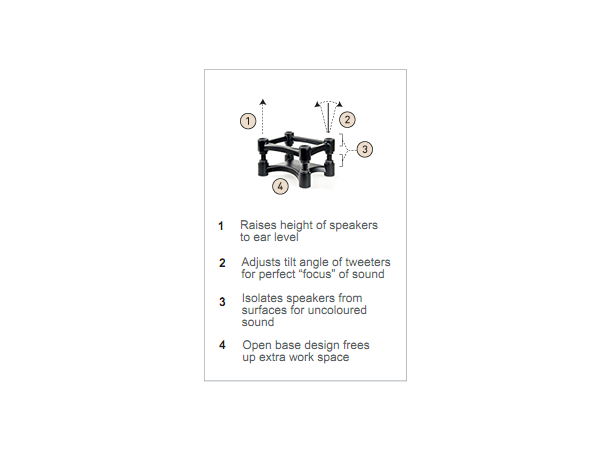

ISO-L8R155 Speaker Stand Design Concept

Genius is in the details
Isolators
The isolation and response of the audio stand is a function of the isolator's shape and its volume and durometer (hardness and density). Its opening, internal taper and concave end (void) result in a compliant element to contain the supporting tubes or rods. This allows the supporting tubes to move fore and aft, while resisting lateral and secondary movements and oscillations. As the speaker cone moves forward, the speaker enclosure tends to move back, as predicted by Newton's third law of reciprocating motion. Transducers, enclosure and upper stand section therefore move in a direction sympathetic to the sound source.


Speaker Stand Shape
Both top and bottom elements provide torsional rigidity for the overall speaker stand design while lending an attractive look. A definite rectangular shape helps define the front and back of the stand and aligns the polarized isolators with the speaker drivers.


Speaker Stand Bottom Element
The bottom element is the most visible part of the design, as longer tubes may be used to raise the upper element and speaker, while exposing the top surface of the element below. This frame, shelf or body section anchors the assembly with a strong, secure base. The isolators are inserted from the bottom, or unfinished side, with a complimentary shape in the molding so it can be inserted only in the correct elongated direction. The lower element sits on the isolator's shoulder and lower flange lip, with the collar protruding through the topside. This lower element does not come in contact with the supporting surface of the desk below. An elongated octagonal shape of the isolator is designed to establish the correct orientation with the speaker's drivers when inserted, as well as maintain the optimal mass of the resilient material around the tube opening.


Speaker Stand Upper Element
Isolators are inserted from the top, or finished side, with the flange and lip protruding from the upper element. Speakers sit on top of these flanges with their weight carried through the isolator, down the tubing, and into a lower section and flange of the bottom isolator, resting on the supporting surface. A cup shape of the flanges contributes to the compliance of the isolators while in compression, as well as providing a 'suction-cup” effect that resists movement or slipping of the stand and speaker. This is especially important when the upper section is tilted to optimize the speaker's orientation towards the listener.
