Direct Out BNC.IO Opsjonskort MADI Coax MADI BNC option module PRODIGY/EXBOX/SG. Direct Out BNC.IO Opsjonskort MADI Coax MADI BNC option module PRODIGY/EXBOX/SG.

Direct Out BNC.IO Opsjonskort MADI Coax

MADI BNC option module PRODIGY/EXBOX/SG.

Varenr: DOMIO0005 PRODIGY
-+
3 på lager
BeskrivelseTeknisk infoTilbehørAlternativerRESSURSER
Beskrivelse

DirectOut IO Moduler

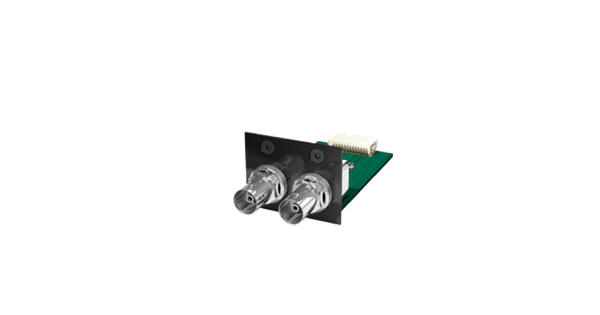

BNC.IO  64 ch MADI, 1 x coaxial BNC input, 1 x coaxial BNC output, 75 O

MADI BNC option module for EXBOX.BLDS, EXBOX.AES, SG.MADI and PRODIGY series

Det er plass til opp til 2 moduler av denne størrelsen i PRODIGY



Modular Approach, Maximum flexibility



PRODIGY.MC provides a variety of I/O capabilities. The concept is based on its eight converter slots for analog line-level, microphone input and AES3 option modules. Equipped with eight channels per module and interface direction, PRODIGY. MC provides up to 64 inputs and outputs. In addition, PRODIDGY.MC’s hardware supports MADI and a network audio option. The two MADI slots can be equipped with BNC, SC optical and SFP modules. A network audio option board adds Dante, RAVENNA (AES67) or SoundGrid connectivity to this very powerful device, and increases its maximum channel capacity to 320 inputs and 324 outputs.



Tilgjengelige IO moduler

AN8.IO 8 ch line input / output, 2 x DSUB-25, balanced
AN8.O8 ch line output, 1 x DSUB-25, balanced
MIC8.HD.I8 ch mic high densitiy input, 1 x DSUB-25, balanced
MIC8.LINE.IO8 ch mic/line input / line output
AES4.IO 4 port AES3 input / output, 1 x DSUB-25 (8 audio channels)
AES4.SRC.IO 4 port AES3 input with SRC / output, 1 x DSUB-25 (8 audio channels)
BNC.IO 64 ch MADI, 1 x coaxial BNC input, 1 x coaxial BNC output, 75 O
SC.IO 64 ch MADI, 1 x SC input, SC output
SFP.IO 64 ch MADI, 1 x SFP cage (matching SFP modules available from DirectOut)
RAV.IO Network Audio RAVENNA / AES67, 128 ch 2 x RJ45, 1x SFP
DANTE.IO Network Audio DANTE®, 64 ch 2 x RJ45, 1x SFP
SG.IONetwork Audio Waves SoundGrid, 128 ch  2 x RJ45, 1x SFP







Analog I/O level (line)+15 / +18 / +24 dBu changeable via jumper on module
MIC8.HD.IInput sensitivity: -56 dBu to +24 dBu EIN: -128 dBu SNR: -115 dBFS (20 Hz - 20 kHz) / -118 dB(A) @ 0dB Gain THD @ -1 dBFS: -113 dB Frequency response: -0.15 dB (10 Hz) / -0.15 dB (20 kHz) 30 dB PAD (switchable), +48 V phantom power (switchable)
MIC8.LINE.IOInput sensitivity: -55 dBu to +24 dBu EIN: -123 dBu SNR: -115 dBFS (20 Hz - 20 kHz) / -118 dB(A) @ 0dB Gain THD @ -1 dBFS: -113 dB Frequency response: -0.5 dB (10 Hz to FS/2), +48 V phantom power (switchable
A/D
SNR: < -115,5 dB RMS (20 Hz - 20 kHz) / -118 dB(A) THD @ -1 dBFS: < -113 dB Frequency response: < -0,15 dB (10 Hz) / -0,15 dB (20 kHz)
D/A
SNR: -116 dB RMS (20 Hz - 20 kHz) / -119 dB(A) THD @ -1 dBFS: -109 dB Frequency response: -0,5 dB (10 Hz) / -0,15 dB (20 kHz)





Teknisk info

Produktinformasjon

- Funksjon & bruk Opsjon
- Grensesnitt (Protokoll) MADI Coaxial
- Tilkoblinger (Pluggtype HW) BNC


Tilbehør
Alternativer
RESSURSER
