DAD AX Analog input kort med mikrofonforsterkere AD
- Sampling, resolution 5bit sigma/delta@5.645 or 6.144 MHz, 24 bit PCM
- PCM (DXD) sample rates 44,1, 48, 88.2, 96, 174.4, 192, 352.8, 384 kHz
- DSD sample rates 2.8224 & 5.6448 Mhz (64 & 128 fs)
- Dynamic range (A) > 123 dB
- THD+N(A) < -117 dB@-3dB FS / 0,00014%
- Cross talk < -120 dB
- Input Impedance (differential) > 10 k Ohm
- Max input level Adjustable from 9 dBu to 30 dBu in steps of 0.1 dB
- Microphone input gain range/accuracy Adjustable from -18 to +70 dB, in steps of 0.1 dB,
- ± 0.25

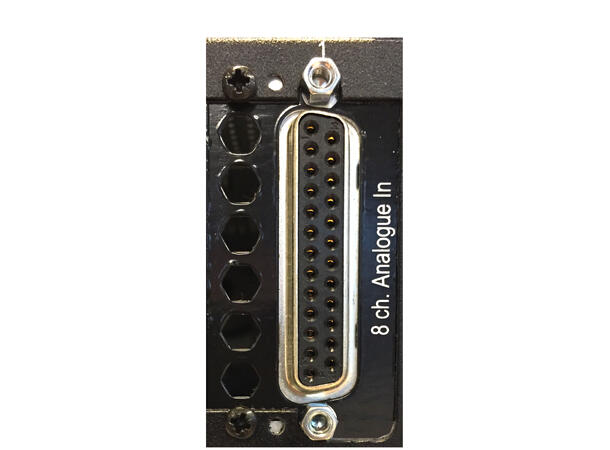

25 Pins D-Sub TASCAM pinformat
