ATC SCM12i Pro Install Monitor
Pris. pr. stk.
- Wide bandwidth & high SPL capability
- Neutral timbre & low distortion for low listener fatigue
- 150 mm/6” ATC CLD Bass Driver
- 25 mm/1” ATC Dual-Suspension HF Driver
- Cabinet mounting points for wall/ceiling mount

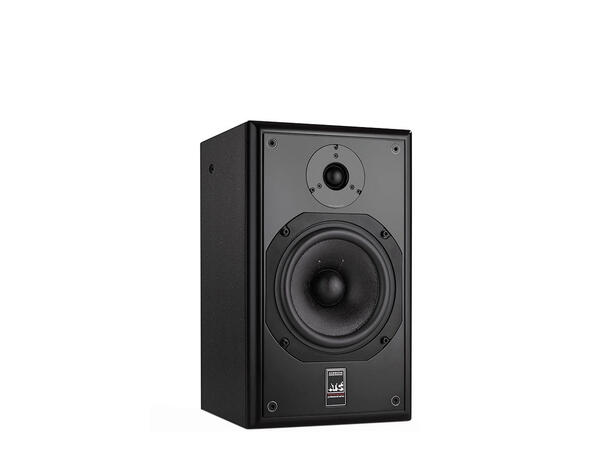

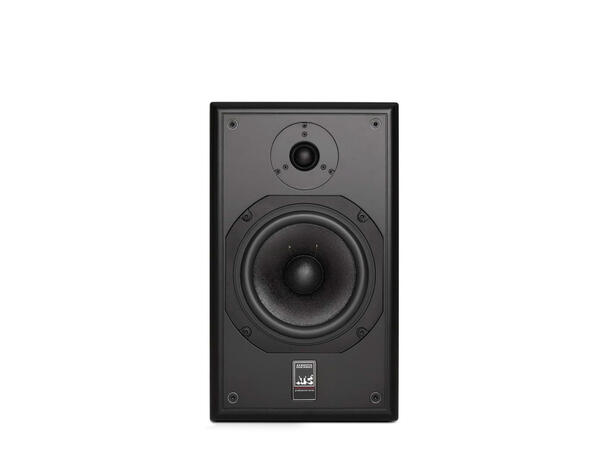

The ATC SCM12i Pro Install Monitor
is a compact 2-way passive monitor designed for installation into
recording, post production, broadcast and film studios.
It’s compact size and exceptional performance make it an ideal
loudspeaker for use in surround/multi-channel recording/mixing and
immersive audio applications such as Dolby Atmos, DTS:X and Auro 3D.

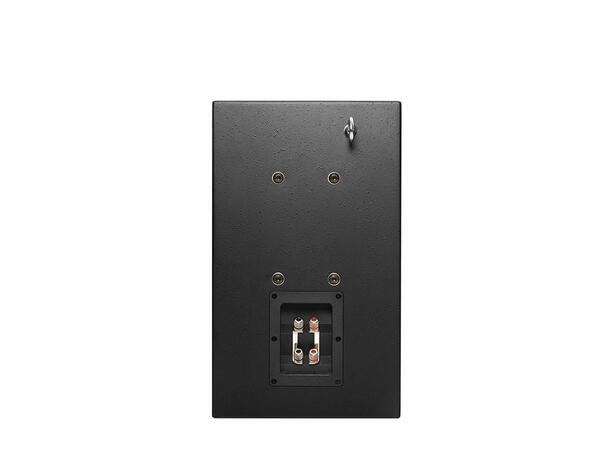

To facilitate simple install, the cabinet features mounting points
compatible with popular wall/ceiling brackets.
The SCM12i is designed around the same philosophy as ATC’s 2 and 3-way
active monitor loudspeakers and also employs driver components &
technology found in these larger models resulting in exceptional
consistency across the product range
Though the SCM12 Pro is the most affordable model in the professional
range of loudspeakers, the monitor makes use of the ATC’s celebrated
drive units for both the mid/bass and tweeter, both being meticulously
hand built at the UK facility.
The tweeter is a 25 mm/one-inch soft-dome designed around ATC’s
unique dual-suspension technology. Unlike conventional tweeters, this
precision part employs two suspensions, offering far greater control of
the voice coil and dome motion — especially at higher sound pressure
levels. The result is an extended high-frequency response with much
greater clarity and definition due to the reduction in disturbing
an-harmonic distortion. Listener fatigue is also greatly reduced,
resulting in users being able to work for longer periods with greater
At the lower end of the frequency spectrum, mid/bass reproduction is
handled by ATC’s 150 mm/six-inch proprietary CLD drive unit. Using a 45
mm/1.75-inch diameter voice coil, and employing an FEA (Finite Element
Analysis) optimized high-energy symmetric gap motor system, the driver
is capable of tremendous dynamic range with minimal power compression.
Cone construction is courtesy of another proprietary ATC technology that
represents another advance in driver performance — namely, Constrained
Layer Damping (CLD), a process that uses multiple laminated fabric cones
to form a stiff, light, and tremendously well-damped structure.
Speaking acoustically, this construction creates a smoother on- and
off-axis frequency response and also a reduction in distortion leading
to a more lifelike reproduction of source material. Meaningfully,
judgements and decisions can be made more quickly, more accurately, and
for longer periods of time by busy working audio professionals.
Put it another way: by employing exceptional drive units, the passive
crossover can, by design, use the minimum number of components in a
simple, second-order implementation. Indeed, the capacitors are all 250 V
DC metalized polypropylene and all the inductors are air-cored types
for minimal signal distortion. Additionally, all of the inductors are
wound in house with very high-purity copper while large-gauge wire is
used for the bass components to minimize signal losses.
Discerning audio professionals always appreciate that exceptional
passive monitors require exceptional amplification; as far as the SCM12
Pro is concerned, the best possible results will be achieved when it is
partnered with ATC’s own range of stereo power amplifiers. As such, the
150 W per-channel P1 Pro dual-mono power amplifier is the perfect
partner — both in terms of power output and its outstanding resolution,
resulting from technology originally developed for ATC’s high-end active
monitoring systems. So customers can comfortably make the upgrade to an
all-ATC monitoring and amplification system, an attractive package
price will be offered for purchasing the two products simultaneously.
Simple, well-engineered products almost always trump feature-rich,
cost-engineered alternatives, and ATC’s SCM12 Pro has been duly designed
with that philosophy very much intact. Its neutral fidelity makes it a
very versatile proposition, one which — when backed up with the
company’s industry-leading six-year warranty — makes for a high-value,
longterm investment for anyone looking to upgrade their monitoring
system. So now is the time to consider EQ’ing, balancing, and editing
faster, with more consistent results and reduced listening fatigue using
the latest nearfield monitoring marvel from ATC.
