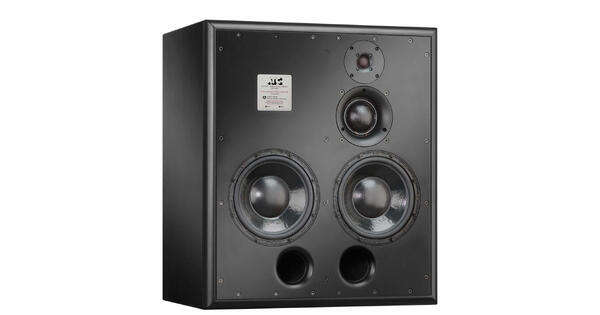

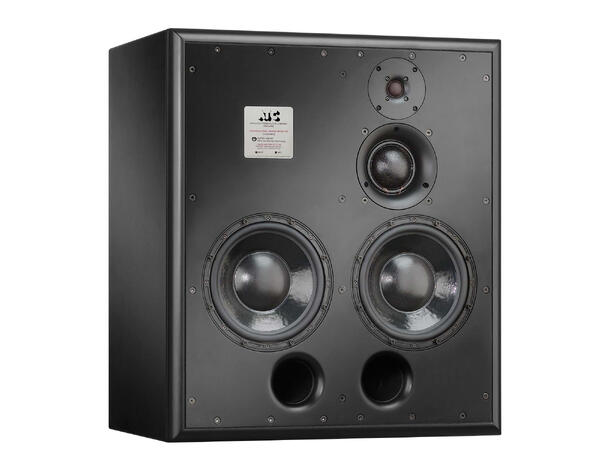

ATC SCM110A PRO 3veis Studiomonitor

Aktiv, 30Hz, 22kHz, 3" Mid, 2 x 9" LF

Varenr: SCM110A SL PRO
-+
4 på lager
BeskrivelseTeknisk infoRESSURSER
Beskrivelse

ATC SCM110A SL Pro  3veis studiomonitor

Pris. pr. stk. Gir deg kvalitet, nøyaktighet og ytelse.

The ATV SCM110ASL Pro is a compact, active 3-way monitor system suitable for larger rooms, based around the same tweeter, midrange and amp configuration as the SCM100ASL Pro, but using dual 9" bass drivers in a larger enclosure. The low-profile SMC 110A comprises twin 9-inch ATC SL bass drivers, an ATC 3-inch soft dome mid and a soft dome one-inch tweeter. Maintaining the strict performance criteria of the taller models of ATC reference monitors, the SMC 110A offers a low profile specifically designed for better sight lines through windows and below obstructions.

Unparalleled functionality and dynamic range, and a 80 x 10 degree dispersion are combined in a monitor system that offers an amplitude linearity of 50 Hz-20 kHz (2 dB). The active design matches six MOSFET amplifier blocks with the drivers to deliver an excellent transient response and a maximum SPL of 115dB. Amplifier output is 50 watts for HF, 100 watts for MF and 200 watts for LF. An LF contour control provides 6 dB of bass boost.

  • ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter.
  • Twin full “SL” spec 9?/234mm bass driver.
  • ATC 75mm “Super Dome” mid driver.
  • On board ATC grounded source 350W Tri-amp pack.
  • LF contour control.
  • Clip indication.
  • 6 year warranty.

Spesifikasjoner:

Drivers: HF 1?/25mm, Mid 3?/75mm, LF 2x 9?/234mm
Amplitude Linearity (±2dB): 50Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 30Hz, 22kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 115dB
Crossover Frequencies: 380Hz, 3.5kHz
Input Connectors: Male XLR
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kO
Amplifier Output: Bass 200W, Mid 100W, High 50W
Filters: Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
Dimensions (HxWxD): 715 x 625 x 420mm (28.2? x 24.5? x 16.5?) Depth with amplifier at rear adds 3?
Weight: 73kg
