ATC SCM100A PRO 3veis Studiomonitor 3" Mid, 1 x 12" LF ATC SCM100A PRO 3veis Studiomonitor 3" Mid, 1 x 12" LF

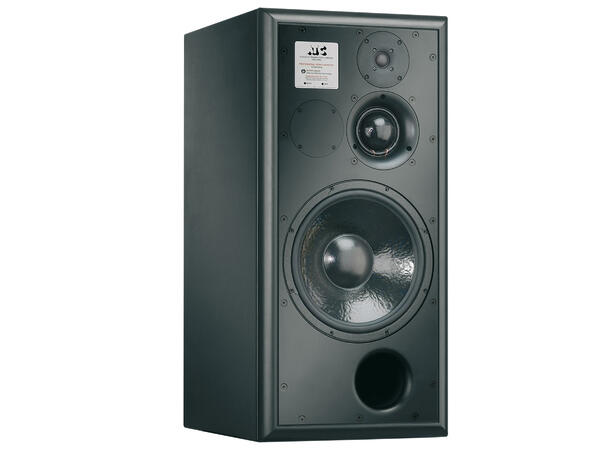

ATC SCM100A PRO 3veis Studiomonitor

3" Mid, 1 x 12" LF

Varenr: SCM100A SL PRO
-+
6 på lager
BeskrivelseTeknisk infoRESSURSER
Beskrivelse

ATC SCM100A SL Pro  3veis studiomonitor

Pris. pr. stk. Gir deg kvalitet, nøyaktighet og ytelse.

  • ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter.
  • Full “SL” spec 12"/314mm bass driver.
  • ATC 3"/75mm “Super Dome” mid driver.
  • On board grounded source 350W Tri-amp pack.
  • LF contour control.
  • Clip indication.
  • 6 year warranty.

Spesifikasjoner:

Drivers: HF 1"/25mm, Mid 3"/75mm, LF 12"/314mm
Amplitude Linearity (±2dB): 65Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 32Hz, 22kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 115dB
Crossover Frequencies: 380Hz, 3.5kHz
Input Connectors: Male XLR
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kO
Amplifier Output: Bass 200W, Mid 100W, High 50W
Filters: Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
Dimensions (HxWxD): 832 x 398 x 581mm Depth with amplifier at rear adds 3"
Weight: 65kg
