AEQ XPEAK_IF  Audio I/O interface GPIO for intercom system

AEQ XPEAK_IF Audio I/O interface

GPIO for intercom system

Varenr: 120683
-+
Bestillingsvare (19 dager)

Jesper Kolvig

Salgssjef

+47 23 19 96 07









BeskrivelseTeknisk infoTilbehørRESSURSER
Beskrivelse

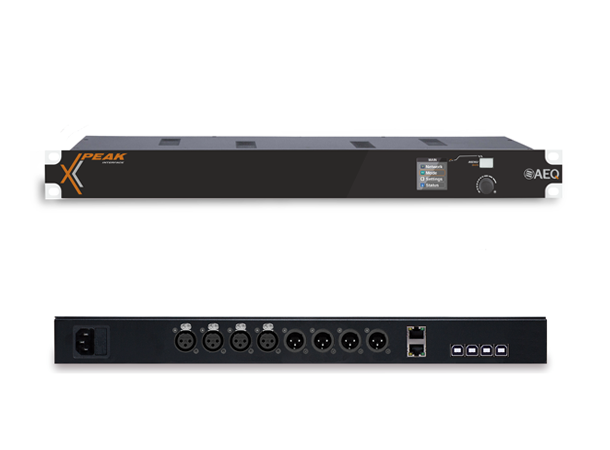

The Xpeak_IF interface provides bidirectional interconnectivity with the Xpeak system to 4 external audio sources in analogue, digital USB, or AoIP Dante/AES67 formats.

A perfect complement to work with camera or PA systems, RF intercoms, Audio mixing consoles and other. It also adds 4 GPIs and 4 GPOs to the system.

2 IP ports, 4 USB type B, 4 XLR male and 4 XLR female. It introduces 4 audio inputs in the intercom system, to choose between: 4 AES67/Dante IP ports, 4 USB ports, and 4 analog ports. Simultaneously extract 4 intercom audio streams in each of these formats. It also incorporates 4GPI and 4 GPO.



  • 4 Channel audio I/O converter for analog, USB and AoIP Dante / AES67 to 4 bidirectional G722 encoded channels that integrates with the virtual matrix or the party-line system.
  • USB connection: The 4 USB audio ports are type B and allow you to connect audio from a PC.
  • Ethernet connection: internal switch with two external network ports. Different uses: daisy chain, separation between Dante audio and encoded audio + Control.
  • GPIO: Mini-Hartmann connectors include 4 opto-coupled GPIs and 4 GPOs, external power pin and ground.
  • 1.54” color TFT screen: allows information such as IP address, audio presence and status to be displayed.
  • Encoder and menu key to navigate the user interface and facilitate configuration and status viewing.



Teknisk info

Produktinformasjon

- Funksjon & bruk
  • IP nettverk lyd
  • 19" rack
