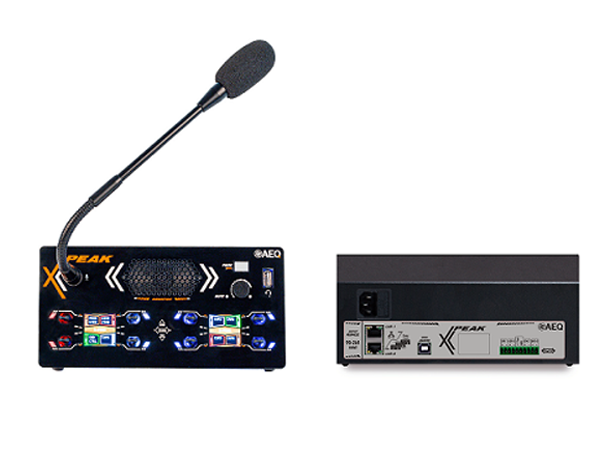

AEQ XPEAK_D  Desktop intercom userpanel with 8 pageable 4 way levers

AEQ XPEAK_D Desktop intercom userpanel

with 8 pageable 4 way levers

Varenr: 120682
-+
Bestillingsvare (19 dager)

Jesper Kolvig

Salgssjef

+47 23 19 96 07









BeskrivelseTeknisk infoRESSURSER
Beskrivelse

Xpeak_D desktop user panels are the perfect choice in desktop environments. Its 8 4 way levers acting as 16 virtual keys facilitating their use, with functionalities of Talk-Listen and Volume.

The signalling of functionalities through displays speeds up the handling of the equipment. The LEDs arranged on the levers show the communication groups in a simple and clear way.

With USB and Bluetooth connectivity for headsets, this latter also allows you to make and receive calls from a smartphone.

The Xpeak_D panels have a double Ethernet connector for star connection to a switch, or if required, to daisy-chain the user panels.

 2 IP ports, front USB port for headsets and rear USB port for PC. 1 Bluetooth access. 2GPI 2GPO. Loud speaker. Microphone included.

  • Ergonomics:
    – 8 x 4-way cross-point levers with associated RGB led.
    – 2 screens for menu and contextual information associated with the levers.
    – Rotary encoder, menu key and signalling LEDs.
    – Internal power supply.
    – Internal 1Gbps Ethernet switch, with two external RJ45 network ports to connect panels in “Daisy Chain” to a single switch port.
    – GPIO: 10-pin mini-Hartmann connector includes 2 opto-coupled GPIs and 2 GPOs, one external circuit power pin, and ground.
    – Bluetooth: The equipment incorporates a Bluetooth connection as an audio interface with a telephone or headset.
    – Front audio:
        – Gooseneck electret microphone supplied with the panel.
        – Internal speaker that develops 84 dB SPL @ 1 m.
    – USB Audio:
        – Front USB for headsets.
        – Rear USB Type B: To incorporate PC audio.
    – Bluetooth audio: The equipment can be paired with a Bluetooth device, for example a headset or a smartphone.
  • It combines audio signals that arrive at the equipment from the diferent devices.
  • Dimensions:
    – Xpeak R: 482.6 x 44.5 mm. Depth 103 mm.
    – Xpeak D: 217 x 105 mm. Depth 101 mm.
  • Functional:
    – Talk, listen and volume on each lever for a crossover point.
    – Lever paging: 2 pages of levers, total 16 virtual levers.
    – Echo cancellation process.
Teknisk info

Produktinformasjon

- Funksjon & bruk
  • Bordmodell
  • IP nettverk lyd
