Yamaha HY144-D-SRC kort DANTE SRC Rivage 144 digital I/O card Dante

Yamaha HY144-D-SRC kort DANTE SRC

Rivage 144 digital I/O card Dante

Varenr: 121382
-+
Bestillingsvare (16 dager)
BeskrivelseTeknisk infoTilbehørAlternativerRESSURSER
Beskrivelse

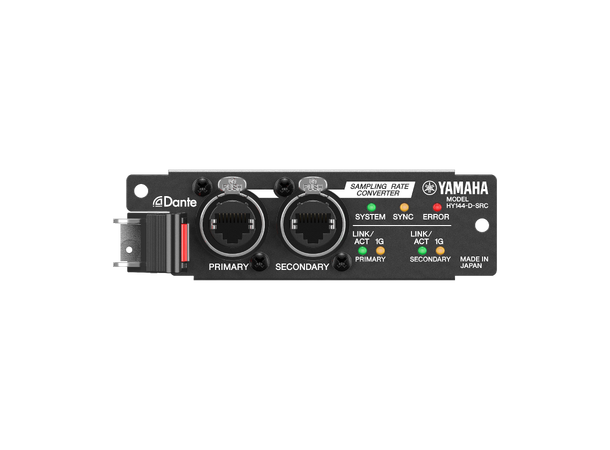

Yamaha HY144-D-SRC Audio Interface Card




The HY144-D-SRC audio interface card supports the Dante audio network protocol, handling up to 144 input and 144 output channels of 96 kHz/32-bit digital audio. Onboard sample rate conversion allows interconnection between devices operating at different sampling rates. Five operational modes can be selected via firmware.

    Transmits and receives up to 144 input and 144 output channels of uncompressed 96 kHz/32-bit digital audio.
    Primary and secondary connectors support redundant connections. Daisy chain connections also supported.
    Five firmware-selectable operating modes: 144io (SRC off, 144 in/144 out), 144io SyncSRC (SRC on, synchronous, 144 in/144 out), 72io AsyncSRC (SRC on, asynchronous, 72 in/72 out), 144in AsyncSRC (SRC on, asynchronous, 144 in/0 out), 144o AsyncSRC (SRC on, asynchronous, 0 in/144 out).
    Dimensions (W x H x D): 125 x 37 x 207mm
    Net Weight: 0.25 kg










    Teknisk info

    Produktinformasjon

    - Funksjon & bruk
    • IP nettverk lyd
    • SRC Sample Rate Konvertering
    - Grensesnitt (Protokoll) Dante
    - Tilkoblinger (Pluggtype HW) RJ45
