TASCAM ML-16D ADDA konverter

16-in/16-out Analog-to-Dante Converter

Varenr: 119296
-+
Bestillingsvare (5 dager)
BeskrivelseTeknisk infoRESSURSER
Beskrivelse

16-channel Analog/Dante Converter
The TASCAM ML-16D is a professional Dante-focused converter made specifically to insert or extract analog audio into or out of a Dante (Digital Audio Network Through Ethernet) network using external breakout devices that utilize Sub-D format connectors.

The ML-16D has 2 D-Sub inputs and 2 D-Sub outputs, which can easily be connected to any of the many devices that utilize D-Sub connectors such as microphone preamplifiers, large and small format console mixers, audio interfaces, amplifiers, and euro block connector devices. This simple, yet elegant, solution enables audio to be quickly and easily inserted into – or extracted from – the Dante audio stream.

Now compatible with SMPTE ST 2110-30
Dante module firmware V1.2.0.0 now supports SMPTE ST-2110-30, which will enable a smooth IP transmission of PCM digital audio for structuring broadcast systems.

* Audinate’s provided Dante Domain Manager (DDM) v1.1 or higher is required for the operation of SMPTE ST 2110-30.
For more information about DDM, please visit Audinate’s website.

SMTPE ST 2110
SMPTE ST-2110 is a video and audio IP network standard defined by SMPTE (Society of Motion Picture and Television Engineers). SMPTE ST-2110 is designed to separately embed and transmit video, audio, and ancillary signals, reducing the de-embedding processing load and network load of each device, while also enabling users to de-embed only the packet data they desire for further edit. ST-2110-30 realizes IP transmission of PCM digital audio, enabling high-precision synchronization using PTP (IEEE1588-2008) and low-latency transmission. It is expected to become a network standard protocol in next-generation broadcasting systems.

Primary and Secondary network connections redundancy and security
Primary and secondary connectors enable building a redundant system with a duplex network. Should the primary network route fails the ML-16D automatically switches to the secondary network route. This highly secure system prevents interruption and introduces no noise during the switch.

Flexible routing to connected Dante-compatible devices
The ML-16D uses Dante Controller to configure the main unit and to connect to other Dante-compatible devices. Dante Controller enables flexible routing configuration to other Dante-compatible devices.

Possible to interconnect with AES67 and Ravenna systems
Dante supports AES67, which enables audio connection with systems using AES67 and AES67-compatible protocols including Ravenna.

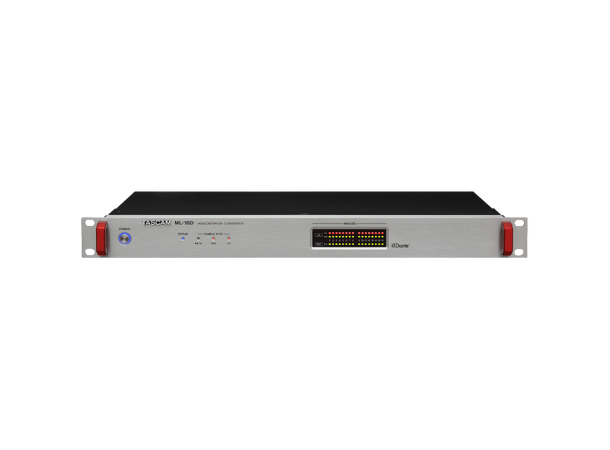

Integrated Signal/Overload indicator
The front panel is equipped with a signal/overload indicator that enables monitoring of analog input/output signals. The signal indicator turns on when a signal level becomes lower than –60dBFs.

5 selectable reference levels which can accommodate to a variety of scenes
The TASCAM ML-16D features selectable reference level setting from 5 maximum level options: +24dBu, +22dBu, +20dBu, and +18dBu (the standard level is +4dBu) and +15dBu (the standard level is +6dBu), which can accommodate to a variety of purposes including professional use in broadcasting studios, public address systems and recording environments.

Flexible choice of connectors according to purposes

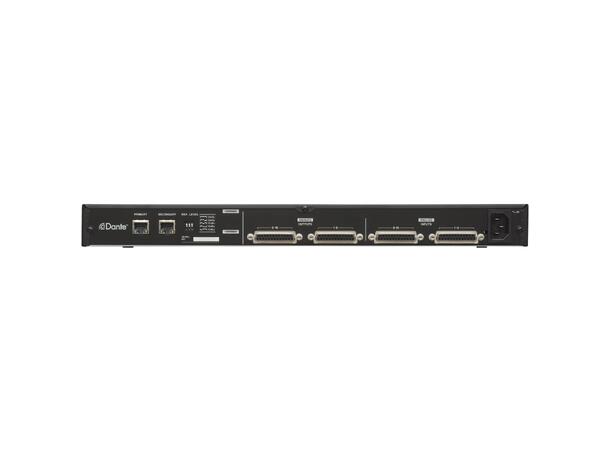

ML-16D is equipped with D-sub 25-pin connectors as analog line input/output connectors, and combining with optional breakout boxes enables conversion to Euro Block and XLR.

Features:

  • Analogue-Dante-Analogue converter for 16 (ML-16D) or 32 (ML-32D) line-level audio channels
  • Dante interface allows up to 16/32 audio channels to be transferred over an Ethernet network
    • Two LAN connectors for primary and secondary networks provide redundancy
    • Flexible routing with ”Dante Controller” software
    • AES67 is supported to allow connection with Ravenna and other compatible audio network technologies
    • Compatible with SMPTE ST 2110-30
  • Up to 96 kHz sampling rate and 24 bit resolution
  • Indicators for operation status and current sample rate
  • Overload indicators for analogue input signals
  • Signal indicators for analogue input and output signals
  • Five different reference levels available to adapt to virtually any application in consumer, professional or broadcast environments (selectable via rear-side switches)
  • 25-pin D-sub connectors for balanced line inputs/outputs (AES59-2012:TASCAM pin assignment)
    • Euroblock breakout box can be used for fixed installation (BO-32DE)
    • XLR breakout boxes can be used for live music or studio applications (BO-16DX/IN, BO-16DX/OUT)
  • 19-inch rack-mountable chassis (1U)

Teknisk info

Produktinformasjon

- Grensesnitt (Protokoll) Dante
- Tilkoblinger (Pluggtype HW)
  • DB 25
  • RJ45
