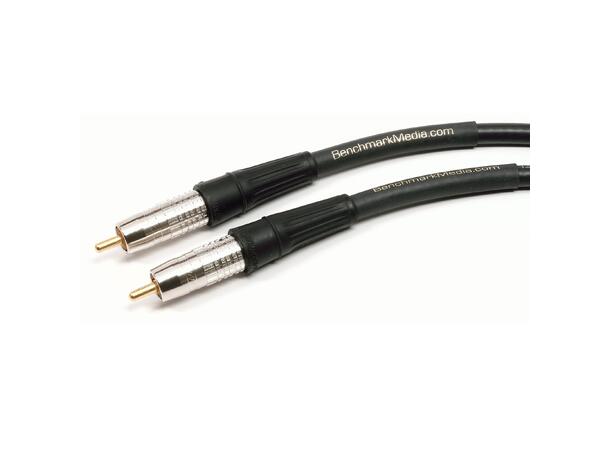

Benchmark (canare) RCA-RCA 3 ft cable Single-channel coaxial

Benchmark (canare) RCA-RCA 3 ft

cable Single-channel coaxial

Varenr: 500-06923-000
-+
Bestillingsvare (5 dager)
BeskrivelseRESSURSER
Beskrivelse

CABLES ARE SOLD INDIVIDUALLY.

Price is for one cable, Order 2 for a stereo pair.

BENCHMARK STUDIO&STAGE™ RCA TO RCA COAXIAL CABLE

HAND ASSEMBLED IN THE USA WITH TRUE SILVER SOLDER

Constructed with Belden 1694A,  low-loss, low-jitter, precision impedance coax. This cable is ideal for SPDIF, AES, and multiplexed digital audio formats. For comprehensive broadband shielding, these coaxial cables feature a dual (foil and braid) shield, to protect against high frequency RF and EMI noise and interference. All electrical and mechanical characteristics of this cable are manufactured to precision tolerances and specifications to minimize attenuation, internal reflections, and impedance mismatches. As a result, pulse rounding, bit-errors, and jitter from the cable interconnection are minimized. We use Canare RCA connectors for the best possible impedance match with 75-Ohm coax cable. These precision cables are also well-suited for unbalanced analog audio connections.

APPLICATIONS:

  • Digital Audio
  • Analog Audio
  • Analog Video

SPECIFICATIONS:

  • RCA male to RCA male
  • Impedance: 75 Ohms
  • Ultra-low Attenuation & Return Loss Belden 1694A Digital Audio Cable
  • Canare RCA connectors with matching flexible boots.
  • 18AWG Solid Copper center conductor
  • 95% TC Braid and 100% Foil Shields for great RF and EMI noise protection
  • Conductor DCR: 6.4 Ohms / 1000 ft.
  • Shield DCR: 2.8 Ohms / 1000 ft.
  • Hand assembled in the USA with true silver solder



CABLES ARE SOLD INDIVIDUALLY.

Price is for one cable, Order 2 for a stereo pair.
