BENCHMARK XLRF TO 2 XLRM "Y" Cable XLRF TO 2 XLRM "Y" Analog

BENCHMARK XLRF TO 2 XLRM "Y"

Cable XLRF TO 2 XLRM "Y" Analog

Varenr: 118348
-+
Bestillingsvare (12 dager)
BeskrivelseTeknisk infoRESSURSER
Beskrivelse

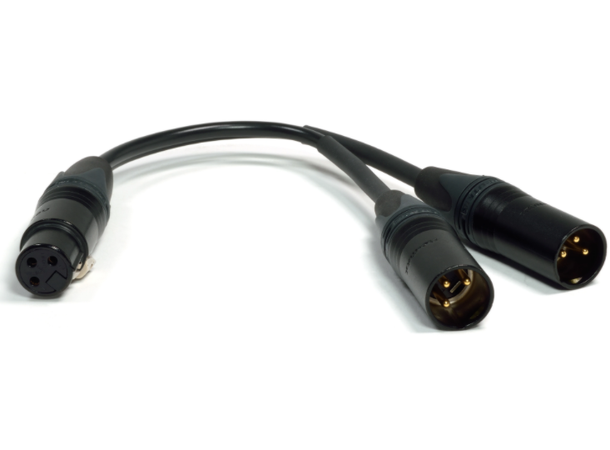

BENCHMARK XLRF TO 2 XLRM "Y" ADAPTER FOR ANALOG AUDIO



BENCHMARK STUDIO&STAGE™ XLRF TO 2 XLRM "Y" ADAPTER CABLE
HAND ASSEMBLED IN THE USA WITH TRUE SILVER SOLDER
APPLICATIONS:

This adapter cable connects a single balanced analog XLR source to dual balanced analog XLR inputs.

BENCHMARK ADAPTER CABLES


Benchmark Adapter Cables combine the best cable, connectors, and construction techniques in order to offer high performance and excellent durability. FLEXYGY FLEX2T2 Microphone and Audio Line Cable is flexible, satin smooth to the touch, and extra strong. The cable offers excellent shielding from RF interference (due to high-density braided shield), very low handling noise (due to internal construction), excellent flexibility (due to 19-strand conductors and special super-flexible insulation), and extended frequency response (due to low capacitance). Benchmark Adapter Cables are handcrafted with true silver solder, using gold-contact Neutrik XX series connectors. The XX series are the most reliable XLR connectors available - providing excellent contact quality, strain relief, pullout resistance, and durability. Neutrik XXR color coding rings can easily be added to assembled cables if desired - order rings separately.  A Benchmark-branded sleeve is your assurance that you have purchased a genuine Benchmark Adapter Cable.

SPECIFICATIONS:

  • 24 AWG, 19-strand copper conductors, Qty. 2
  • Special TPE insulation
  • Flexible in extreme cold weather
  • High-density (> 95% ) Tinned Copper High-density Spiral Braid
  • Conductor DC Resistance: 23.2 Ohms / 1000 ft.
  • Shield DC Resistance: 11.5 Ohms / 1000 ft.
  • Nominal Capacitance: 22.15 pF / ft.
  • Nominal Impedance: 69 Ohms
  • Hand assembled in the USA with true silver solder
  • One end is XLR-Female, the other end is (2) XLR-Male

DESIGNED, ASSEMBLED, AND TESTED IN THE USA


This Benchmark product was designed, assembled, and tested in the USA using USA and imported components. Most major components are made in USA.

Teknisk info

Produktinformasjon

- Plugg inngang (hun) XLR 3-pin
- Plugg utgang (han) XLR 3-pin
