Product overview

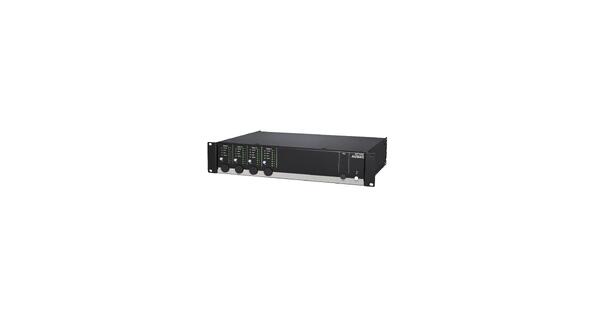

The MTX48 is the four-zone version of the
MTX series, containing two balanced microphone inputs with priority
function, phantom power possibility and three-band tone control.
Four
stereo line-level inputs are provided to which any line-level music
source such as a CD-player, Tuner or MP3 player, ... can be connected.
The other two inputs of the matrix are the additional wall panel inputs
for both line and microphone signals.
The MTX can be controlled by
means of additional control panels, its fully functional web based
interface or the iPhone/ iPad Remote app. The RS232 port makes the MTX
compatible with any home & industrial automation systems supporting
RS232.

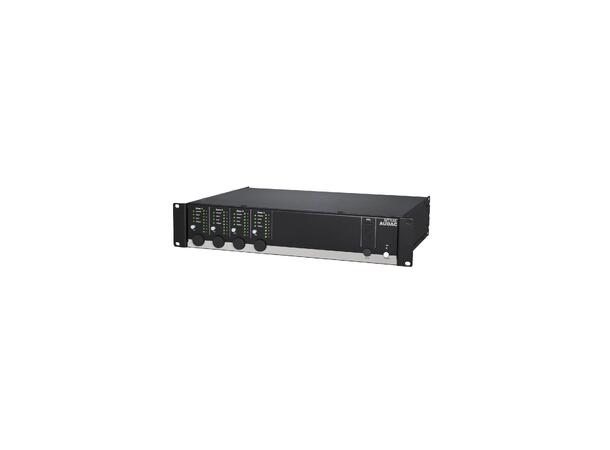

The front panel of the MTX shows a rotary button per zone
with indication LEDs for accessing controls and settings. A built-in PFL
loudspeaker makes it possible to pre-listen every channel without the
need for a headphone.
The balanced line-level zone output
connections are performed using 3-pin Euro-terminal block connectors,
each of them accompanied with an RJ45 connector for connecting
additional wall panels for that zone.
A 24 volts power connection makes it possible to keep the MTX running on emergency power, even if the mains power is shut down.
